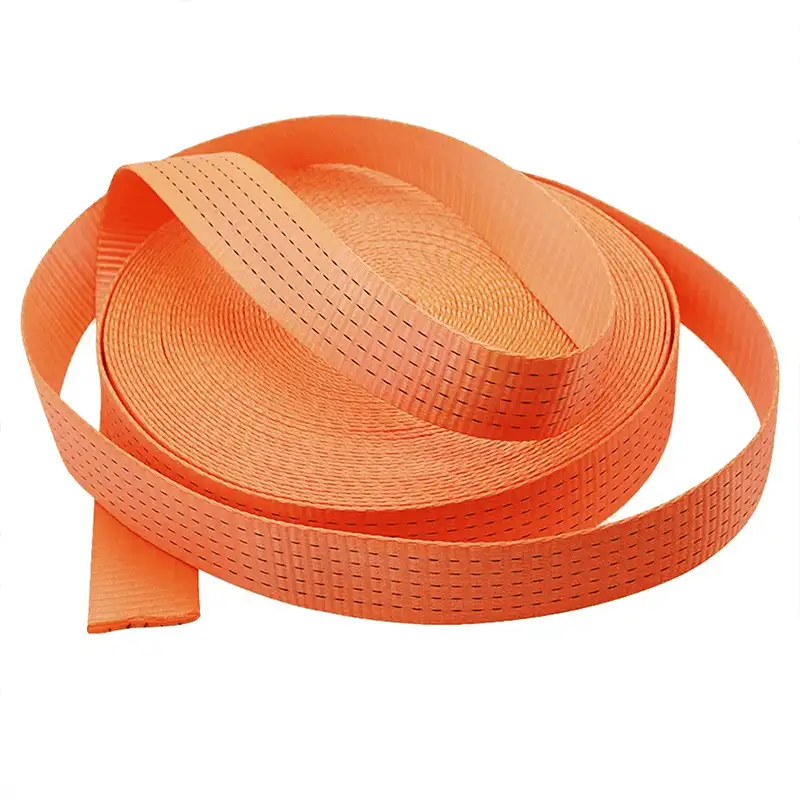

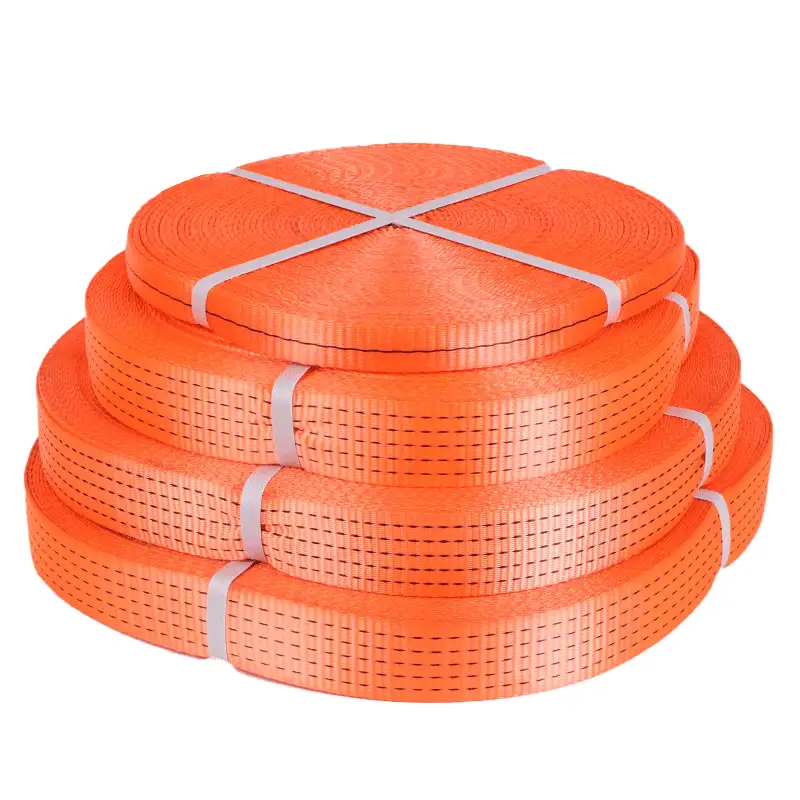

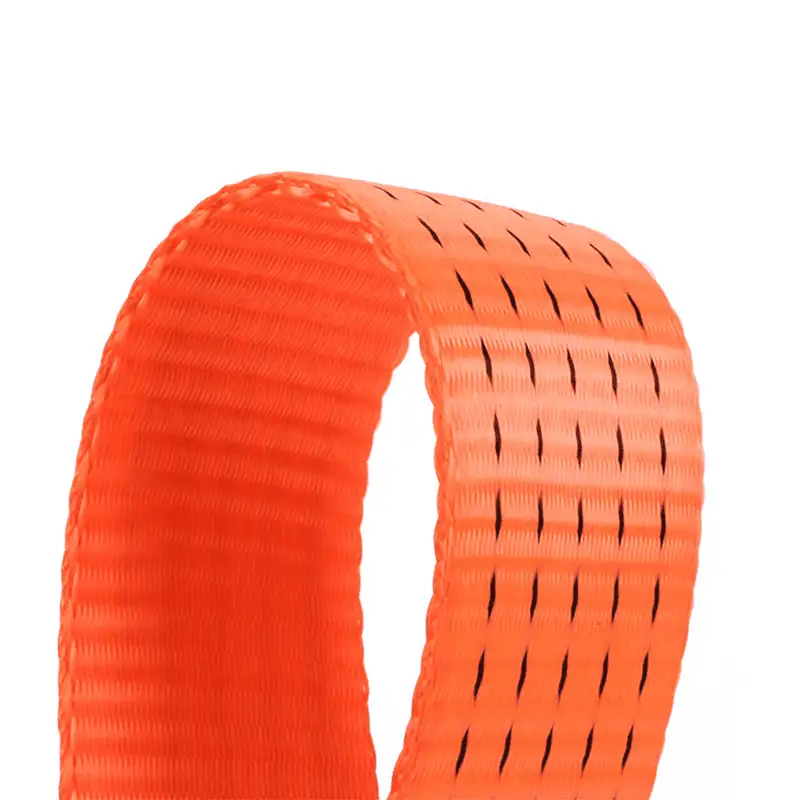

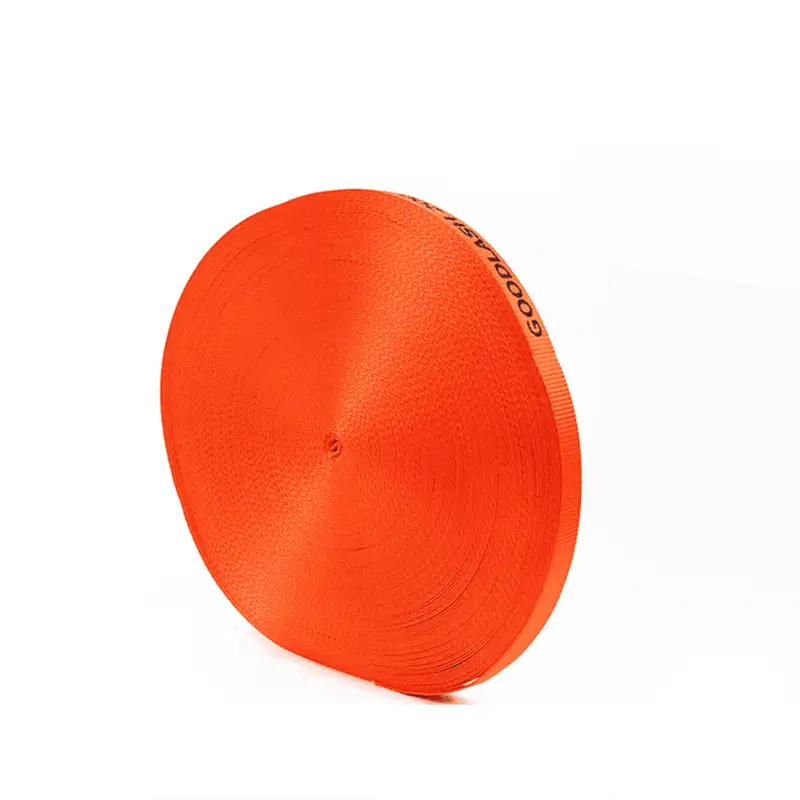

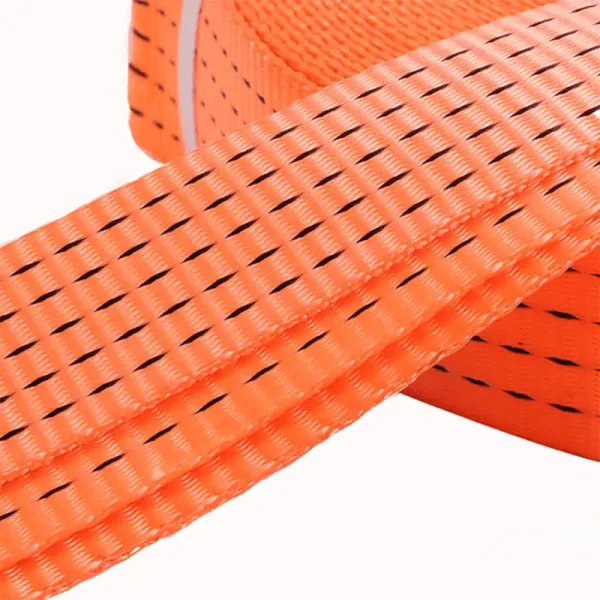

DNV Certificate Customized Packing Strap Cargo Lashing Strap Polyester Woven Webbing Belt for Transportation Cargo Control
Features:
Galvanized metal seals slides easily over strapping.
Hand thread strapping for an economical and easy way to secure
No tooling needed, Perfect finish
Waterproof, Longer life
Application
Polyester one way lashing strap are suitable for all light and heavy packaging, securing large items and awkward loads in various applications and sectors, these straps can effective alternative to steel strapping and part of chain. Common industries that benefit from high-quality container lashing straps include Steel Tube, Aluminum Ingot, Motor, Wood, Pallet, Cartons, Mining and Resources, Oil and Gas, Offshore and Marine, Freight Forwarding, Logistics Packing and other packing.
Specification
| Item Code | Width | Lin. Breaking strength ±10%(kg,lbs) | Meter/ft/coil | Coils/box | Coils/pallet |
|---|---|---|---|---|---|
| TW40L | 13mm 1/2″ | 295kg/650lbs | 1200M/3937ft | 3 | 108 |
| TW50L | 16mm 5/8″ | 350kg/771lbs | 850M/2789ft | 3 | 108 |
| TW60L | 19mm 3/4″ | 430kg/947lbs | 700M/2297ft | 3 | 108 |
| TW40 | 13mm 1/2″ | 375kg/826lbs | 1100M/3609ft | 3 | 108 |
| TW50 | 16mm 5/8″ | 450kg/992lbs | 850M/2789ft | 3 | 108 |
| TW60 | 19mm 3/4″ | 580kg/1279lbs | 600M/2000ft | 3 | 108 |
| TW65 | 19mm 3/4″ | 750kg/1653lbs | 500M/1640ft | 3 | 108 |
| TW66 | 19mm 3/4″ | 818kg/1804lbs | 500M/1640ft | 3 | 108 |
| TW85 | 25mm 1″ | 1000kg/2200lbs | 500M/1640ft | 3 | 108 |
| TW86-1200 | 25mm 1″ | 1230kg/2700lbs | 500M/1640ft | 3 | 108 |
| TW105AAR | 32mm 1-1/4″ | 1500kg/3285lbs | 335M/1100ft | 3 | 108 |
| TW150AAR | 38mm 1-1/2″ | 2455kg/5400lbs | 180M(600ft)/roll in ribbon wound | 4 | 192 |
| TW55 | 16mm 5/8″ | 600kg/1322lbs | 600M/2000ft | 3 | 108 |
| TW56 | 16mm 5/8″ | 818kg/1800lbs | 600M/2000ft | 3 | 108 |
| TW74 | 19mm 3/4″ | 1000kg/2200lbs | 500M/1640ft | 3 | 108 |
| TW75 | 19mm 3/4″ | 1100kg/2400lbs | 500M/1640ft | 3 | 108 |
| TW76 | 19mm 3/4″ | 1227kg/2700lbs | 500M/1640ft | 3 | 108 |
| TW86-1350 | 25mm 1″ | 1365kg/3000lbs | 400M/1300ft | 3 | 108 |
| TW105H | 32mm 1-1/4″ | 2300kg/5000lbs | 125M/410ft | 4 | 192 |
| TW150HAAR | 38mm 1-1/2″ | 3500kg/7700lbs | 180M(600ft)/coil 100M/roll in ribbon wound | 4 | 192 |
| TW200AAR | 40mm 1-5/8″ | 5000kg/11000lbs | 100M/328ft | 4 | 192 |
| TW500 | 50mm 2″ | 5000kg/11000lbs | 100M/328ft | 4 | 192 |
| TW750AAR | 50mm 2″ | 7500kg/16500lbs | 75M/250ft | 4 | 192 |
Specification:
| Width | Min.Linear Breaking Strength |
Min.System Breaking Strength |
| 32mm | 2000 daN | 3400 daN |
| 32mm | 2300 daN | 3910 daN |
| 38mm | 3500 daN | 5950 daN |
| 40mm | 5000 daN | 8500 daN |
| 50mm | 5000 daN | 8500 daN |
| 50mm | 7500 daN | 12500 daN |
